Specifications
With small turbine shape, the Dyna-Cam takes 50% less space for installation yet produces twice the torque output.

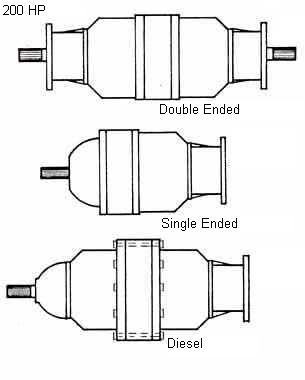

Depending on the success of our initial engine and possibly additional funding, larger and smaller engine sizes may be developed, to deliver more or less horsepower, turbo, or supercharged engines and engines  fueled by diesel or jet fuel. (See disclaimer)


Key Specifications

  • 200 HP @ 2000 RPM
  • 175 HP @ 1600 RPM
  • 650ft.lb torque @ 1200 RPM
  • 525ft.lb. torque @ 2000 RPM
  • 373 Cubic Inches
  • 265 Lbs Dry Weight
  • 12 Cylinder, 6 Piston
  • 3.25" Bore - 3.75" Stroke
  • .40 Lb./Hp-Hr @ Cruise
  • .47 Lb./Hp-Hr @ Full pwr.
  • Fuel Injected
  • Dual Ignition or Single

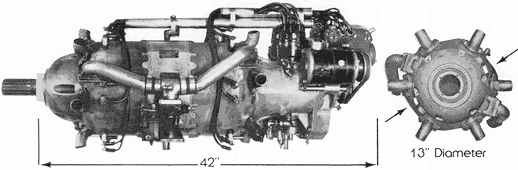

  • 13" Diameter x 40" Length
  • Type Certificate # 293
